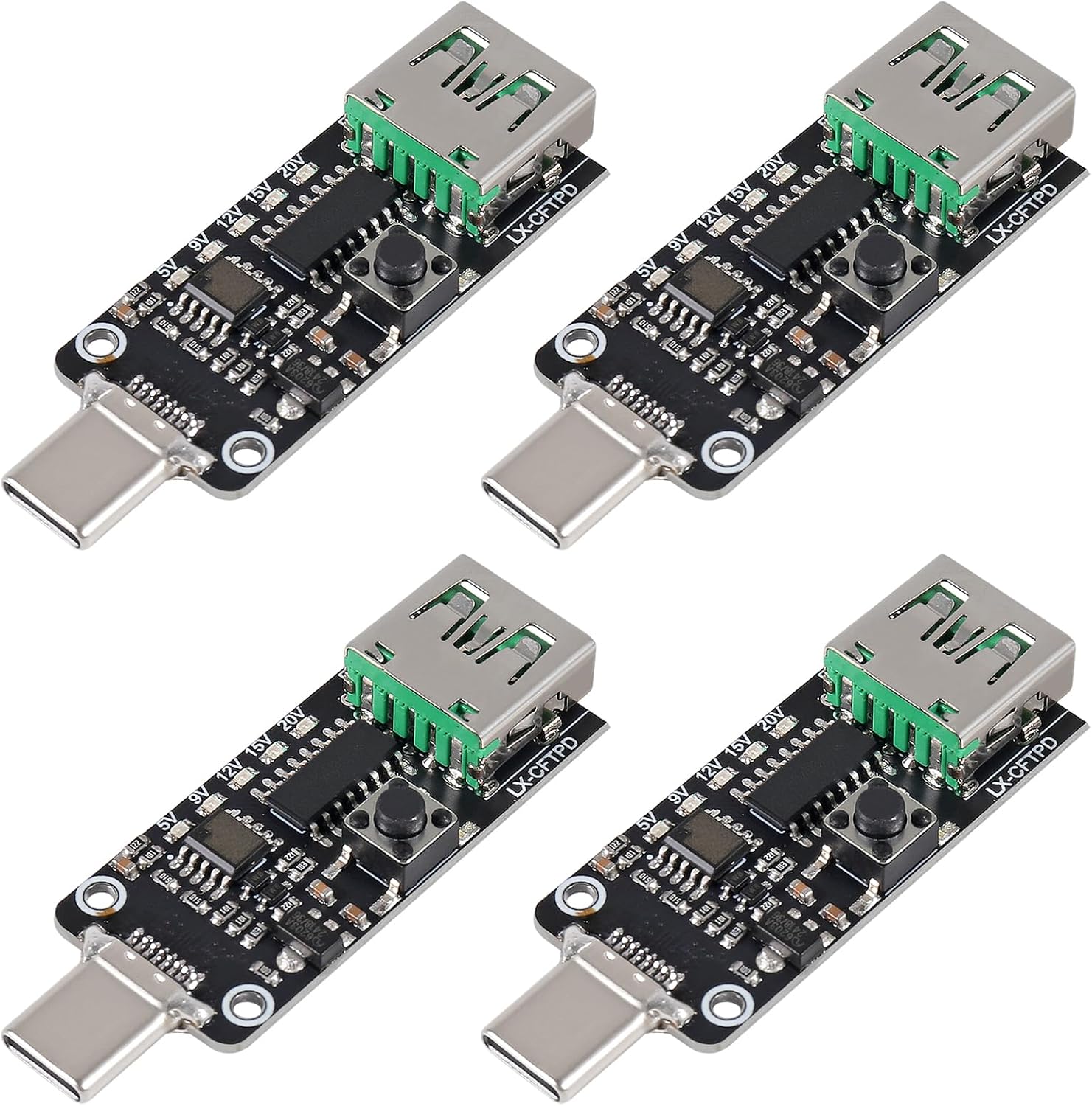

4pcs 100W 5A USB-C Fast Charge USB-C PD QC DC 5V 9V 12V 15V 20V Adjustable Voltage Power Trigger Module 5A Type-C Female Input (Type-C Female -2P Terminal)
Product details
| Management number | 234084379 | Release Date | 2026/06/27 | List Price | US$5.60 | Model Number | 234084379 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Support PD3.0, PD2.0, QC, FCP, AFC voltage deception output,mode free switching, orcan be set to only support PD.Support 5V/9V/12V/20V deception output (specific range depends on your power supply).Equipped with button lock function to prevent misoperation (to avoid voltage damage to loadequipment).Quick setting of 5V/9V/12V/20V. LED indication output.Parameter braking is saved, and the last deception setting is executed when powered on again.UItra low power consumption, high current,supporting 100W output.Maximum 20V5A output (actual value depends on your power supply).Type-c integrated molding, sturdy and durable.Support testing functions such as automatic polling to the highest voltage and holding,automatic polling to the highest voltage and holding to 5V, infinite cycling, etc.The test jump time is adjustable.Suitable for aging testing, the module can withstand voltage above 30V.
- 100W 5A USB-C Fast Charge Trigger Board Module PD/QC Decoy Board Fast Charge USB Type-c PD 2.0 3.0 Power Delivery Boost Module
- PD ONLY short circuit contact: After short circuit, the module only supports the PD protocol. DM and DP short circuiting contacts: After short circuiting, DM and DP can be input from USB. Unless needed, short circuiting is not recommended.
- Support PD3.0, PD2.0, QC, FCP, AFC voltage deception output,mode free switching, orcan be set to only support PD.
- USB-C PD QC DC 5V 9V 12V 15V 20V Adjustable Voltage Power Trigger Module 5A Type-C Female USB Port Input
- 100W 5A USB-C Fast Charge USB-C PD QC DC 5V 9V 12V 15V 20V Adjustable Voltage Power Trigger Module . stable performance.Simple installation
| UPC | 687117752352 |
|---|---|
| ASIN | B0DSB6WMRX |
| Brand | ACEIRMC |
| Color | Type-C Female -2P Terminal |
| Amperage | 5 Amps |
| Form Factor | Micro-ATX |
| Manufacturer | ACEIRMC |
| Model Number | ACEIRMC-C-2P-100W |
| Maximum Power | 100 Watts |
| Output Current | 5 Amps |
| Output Voltage | 20 Volts (DC) |
| Output Wattage | 100 Watts |
| Specification Met | UL |
| Enclosure Material | Plastic |
| Warranty Description | 1 |
| Connector Type Used on Cable | USB Type C |
