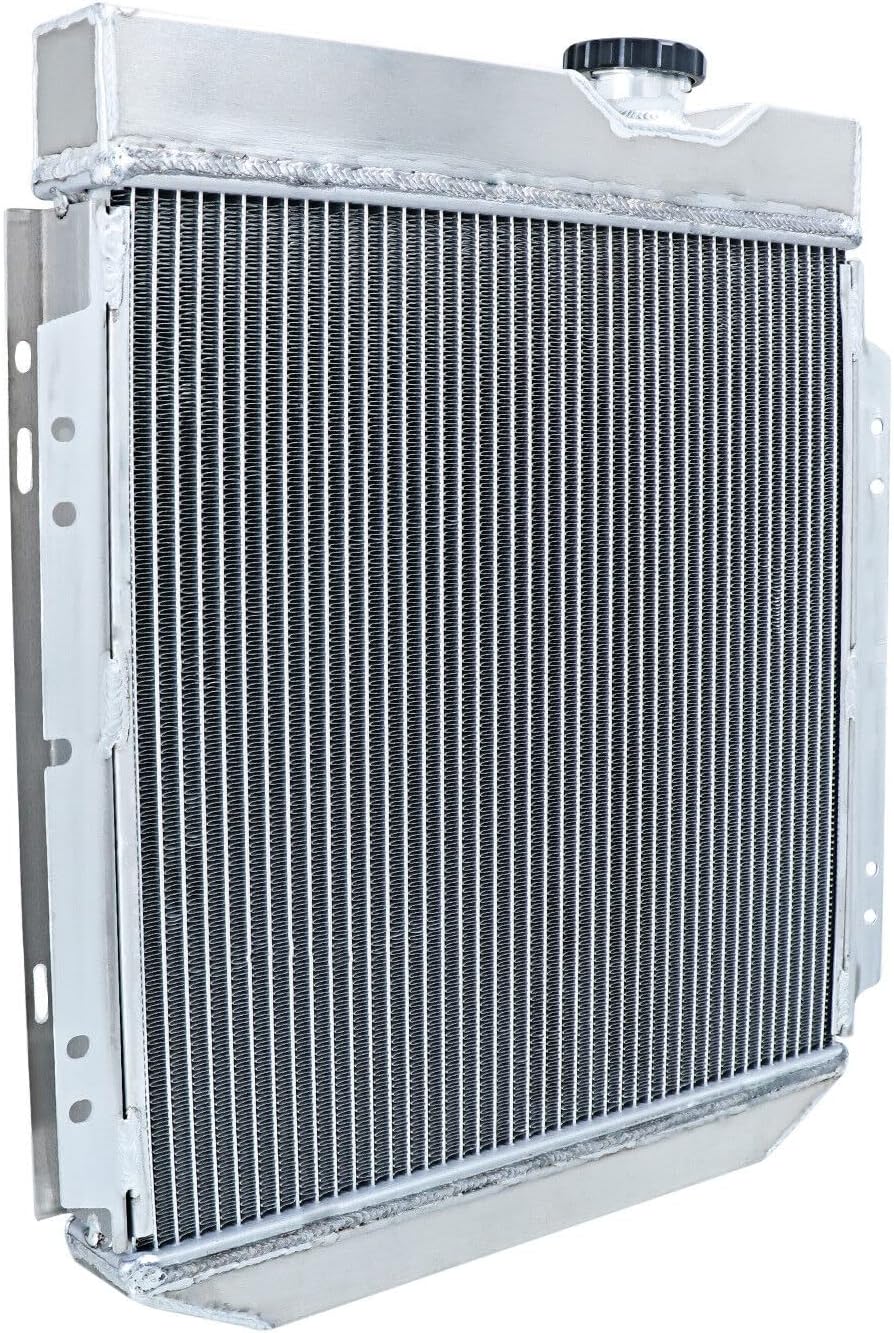

ALLOYWORKS 4 Row All Aluminum Radiator + Shroud Fan + Relay Kit For 1964-1966 Ford Mustang / 1960-1965 Falcon / 1961-1965 Mercury Comet V8 Radiators

THIS LISTING INCLUDING THE RADIATOR AND SHROUD AND ONE 14" FAN +Thermostat Kit ! Radiator Size: Row: 4 Row Core Material: Full Aluminum Radiator Cap: included Core and Tank: All Aluminum Core Size: 16-1/2" High x 17" Wide Overall Size: 21-3/4" High x 19-5/8" Wide Upper INLET: 1-1/2" located on the Passenger side. Lower OUTLET: 1-3/4" located on Driver side. Mounting System: Bracket Transmission Cooler: Included Transmission: Automatic and Manual. Vehicle Fitment: For 60 61 62 63 64 65 Ford Falcon For Ford Mustang 64 65 66 For Ford Ranchero 60 61 62 63 64 65 66 For 65 66 Ford Mustang 5.0 Conversion V8 For 61 62 63 64 65 Mercury Comet For 60-66 FORD/MERCURY SBC/MUSTANG 3.3L l6/V8 For Ford Mustang /Falcon/Ranchero/Mercury Comet/V8 conversion **For V8 Engine swap ONLY. Engine applications: 5.0L, 302ci, 351ci, 390ci, 428ci, & 429ci V8 ONLY FANS: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 14.050” Thickness (in): 2.500” Number of Blades: 8 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. Probe typically threads into radiator, water outlet or manifold.

• ■ Overall Size: 21.75" H x 19-5/8" W. Core Size: 16.5" H x 17" W. INLET/OUTLET: 1.5" / 1.75".
• ■ Full Aluminum material, 35% more cooling capacity than standard radiator
• ■ High performance 4 row racing design, The core of the radiator is welded in vacuum brazing furnace, no epoxy.
• ■ Packed Including: 1 x Aluminum Radiator + 1x Shroud with Fans + Thermostat
