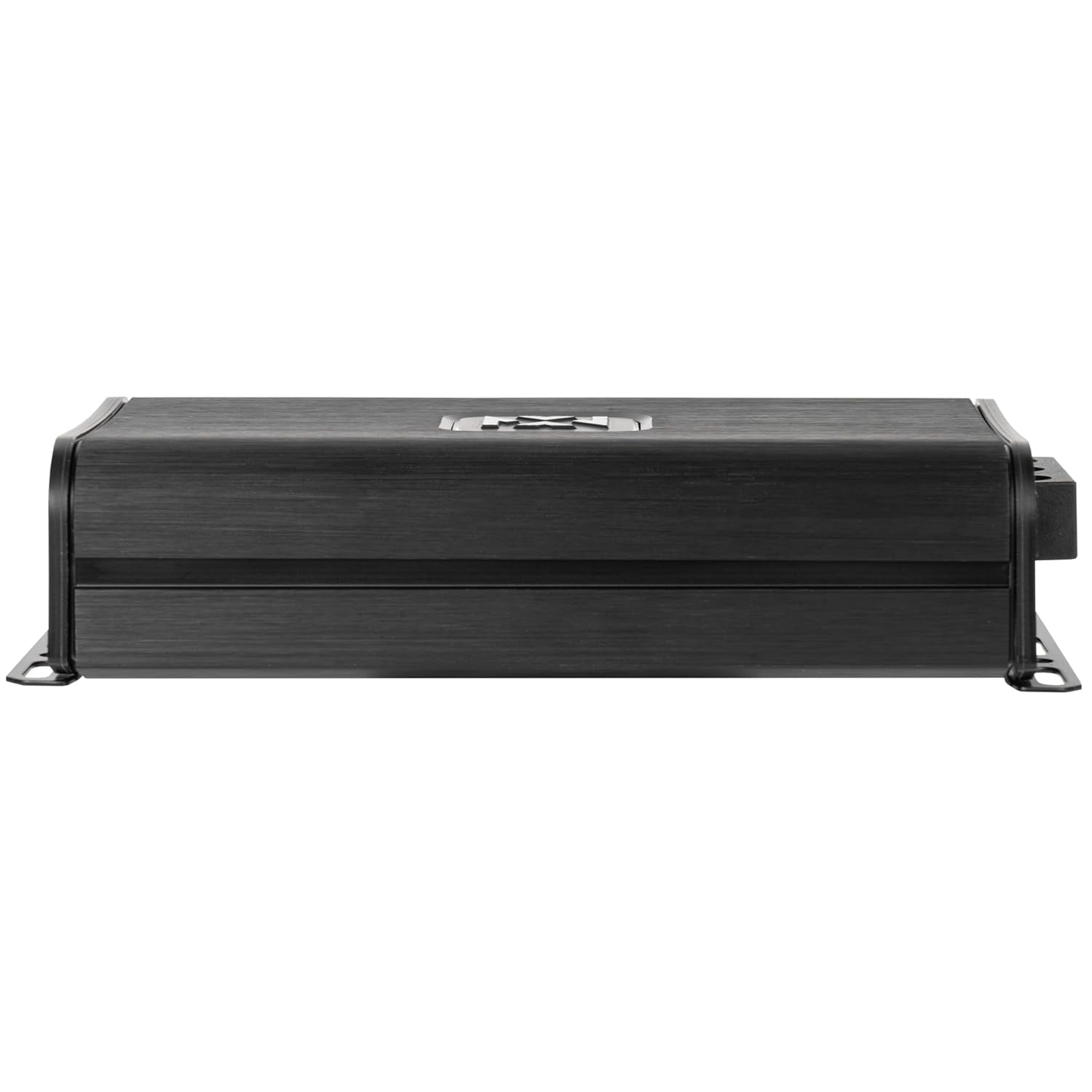

NVX VADM4v2 4-Channel Class D Amplifier 1000W Peak 500W RMS 2/4-ohm Stable High/Low Pass X-Over

Experience the new NVX VADM4's impressive power, boasting a peak power rating of 800 Watts and RMS power output ranging from 80 watts x 4 channels at 4 ohms to 125 watts x 4 channels at 2 ohms. Enjoy robust and reliable audio performance for your car, marine vessel, or powersports vehicle. Utilizing cutting-edge Micro Class D technology, this amplifier achieves an extremely compact form factor, measuring just 6.49" L x 3.3" W x 1.48" H. Enjoy powerful sound without sacrificing valuable space in your vehicle or marine setup.

• Product Highlights
  • 80 watts x 4 channel @ 4 ohm
  • 125 watts x 4 channel @ 2 ohm
  • Bridged: 250 watts x 2 channel @ 4 ohm
  • Total RMS Power: 500 watts
  • Class D 2 ohm Stable 4-Channel-Channel Amplifier
• Product Details:
  • V Series Class D 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
  • 4 ohm: 80 watts x 4 channel
  • 2 ohm: 125 watts x 4 channel

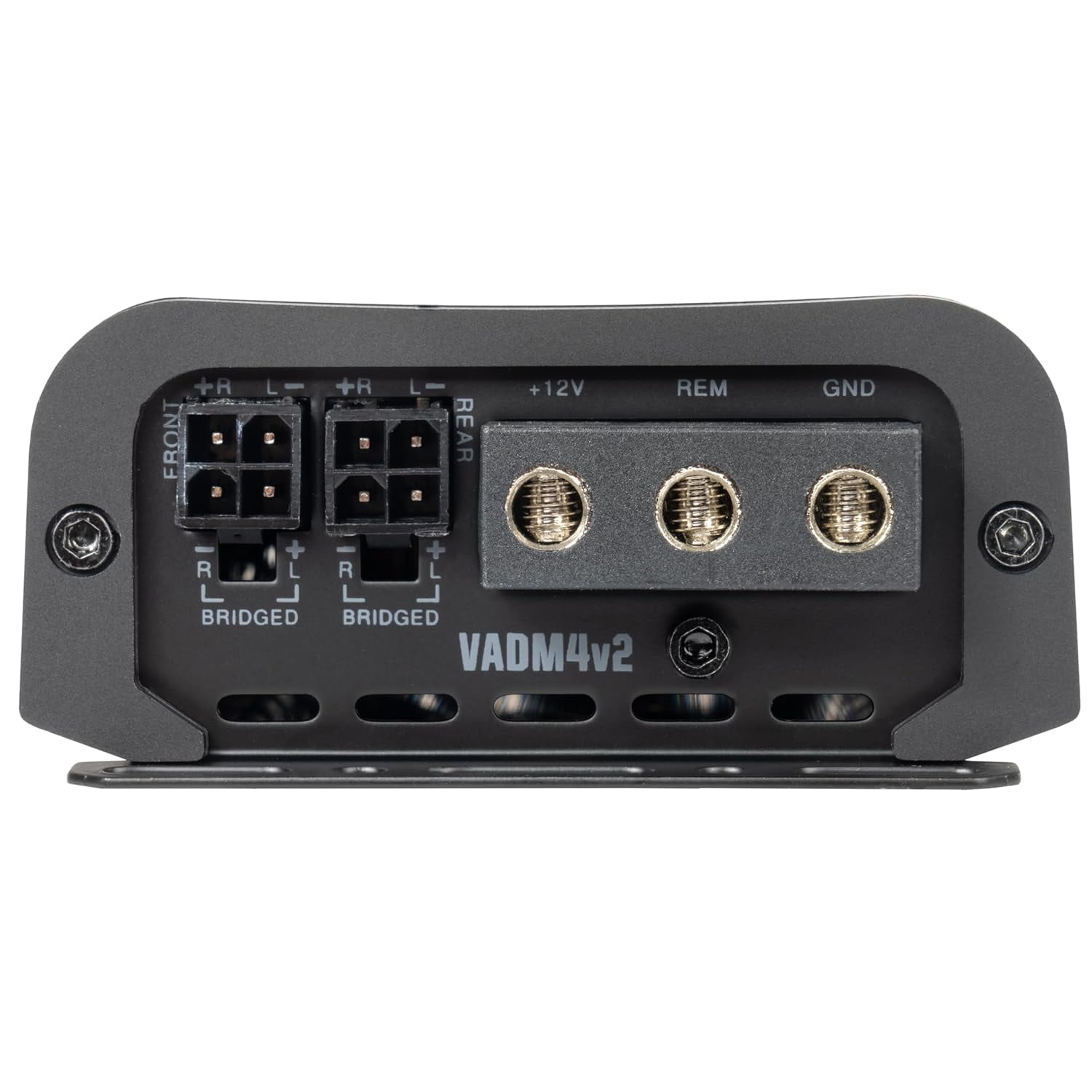

  • Bridged: 250 watts x 2 channel @ 4 ohm
  • Total power output: 500 watts
  • LED Power/Protect Light
  • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
  • 4-way protection circuitry (thermal, overload, speaker short protection and DC offset)
  • Balanced differential inputs eliminate noise picked up by signal cables

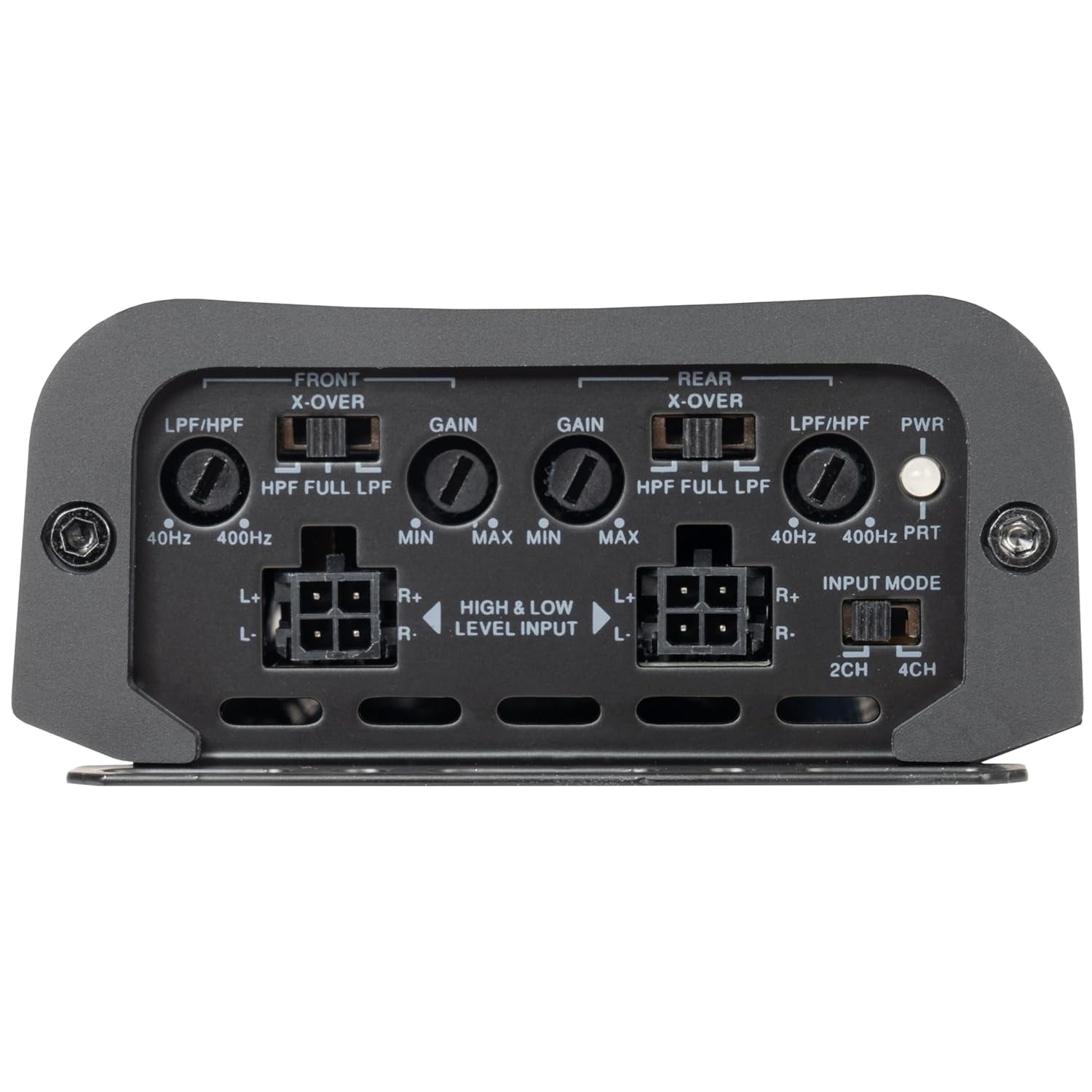

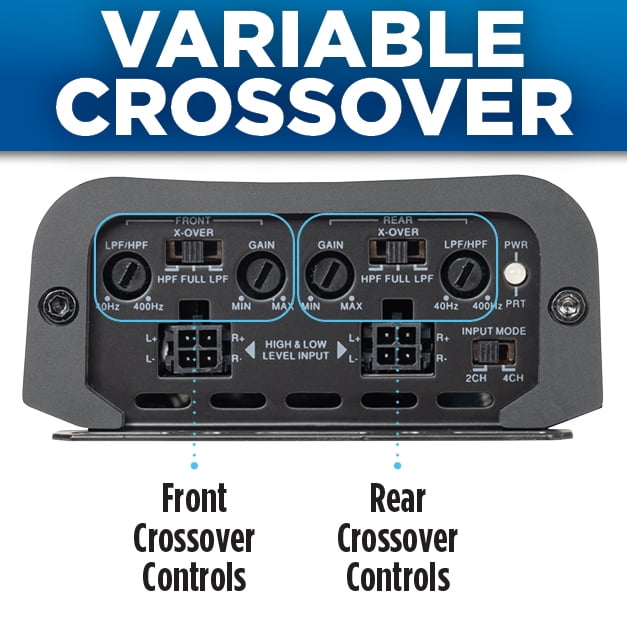

  • Selectable crossover modes: FULL / HPF / LPF
  • Input sensitivity:
  • Low level and High level: 0.2 - 10 volts
  • Frequency Response: 20 - 20000 Hz
  • Total Harmonic Distortion (THD): <0.1%
  • Signal to Noise Ratio: >96 dB
  • Variable high-pass filter: 40 - 400 Hz
  • Variable low-pass filter: 40 - 400 Hz
  • 8 AWG gauge amplifier wiring kit is recommended for installation

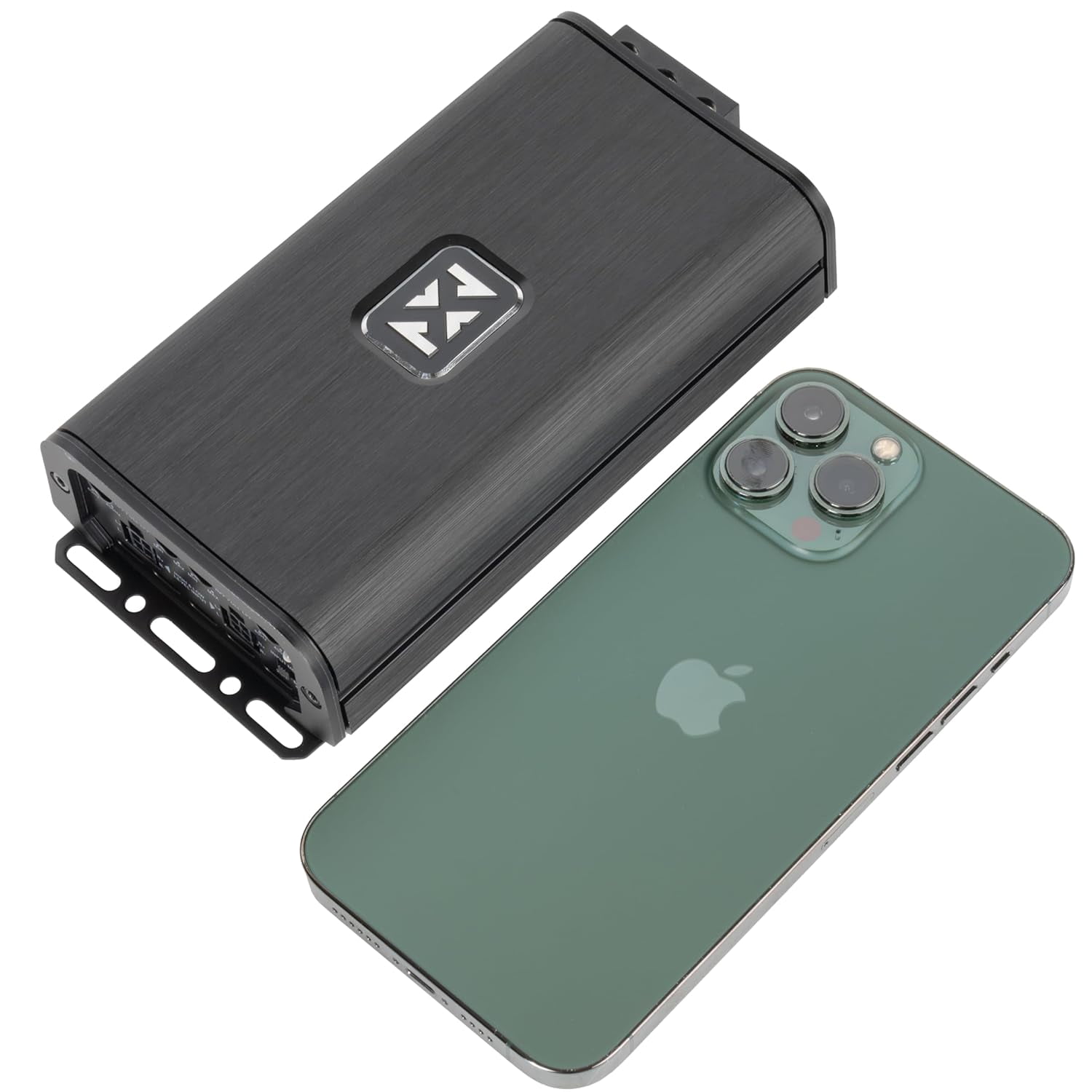

  • Dimensions: 6.49" L x 3.3" W x 1.48" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: VADM4v2
• Key Features
  • Amplifier Key Features - Compact Design
  • Speaker Level Inputs - Weather-Resistant
• Power Specifications - Full Range Channels
  • RMS Power @ 4 ohms - 80 watts x 4 channel
  • RMS Power @ 2 ohms - 125 watts x 4 channel
  • Bridged RMS Power - 250 watts x 2 channel
• Power Specifications - Full Range Channels
  • Peak Power @ 4 ohms - 160 watts x 4 channel
  • Peak Power @ 2 ohms - 250 watts x 4 channel
  • Bridged Peak/Max Power - 500 watts x 2 channel
• Amplifier Specifications
  • Series - V Series
  • Amplifier Class - D
  • Number of Channels - 4-Channel
  • Total Peak Power Output - 1000 watts
  • Total RMS Power Output - 500 watts
  • Maximum Input Gauge Size - 8 AWG
  • Minimum Impedance Unbridged - 2 ohm
  • Minimum Impedance Bridged - 4 ohms
  • Frequency Response - 20 - 20000 Hz
  • THD at Rated RMS Power - <0.1%
  • Speaker Level Inputs - Optional (Requires Accessory Adapter)
  • Preamp Outputs - No
  • Built-in Crossover - Low-Pass (LP), High-Pass (HP), Full (AP)
  • High-Pass Crossover Frequency - 40 - 400 Hz
  • Low-Pass Crossover Frequency - 40 - 400 Hz
  • Signal-to-Noise Ratio - >96 dB
  • Remote bass/level controller - Optional (Accessory required and sold separately), NVX XBRC: NVX XBRC Universal Bass Knob
  • Strappable - No
  • Sonic Certified Amplifier - Yes
  • Amp Bluetooth Connectivity - No
  • Hi-Res Certified - No
  • Low-Level Input Sensitivity - 0.2 - 10 volts
  • High-Level Input Sensitivity - 0.2 - 10 volts
• What is in the box?
  • Paperwork - User manual

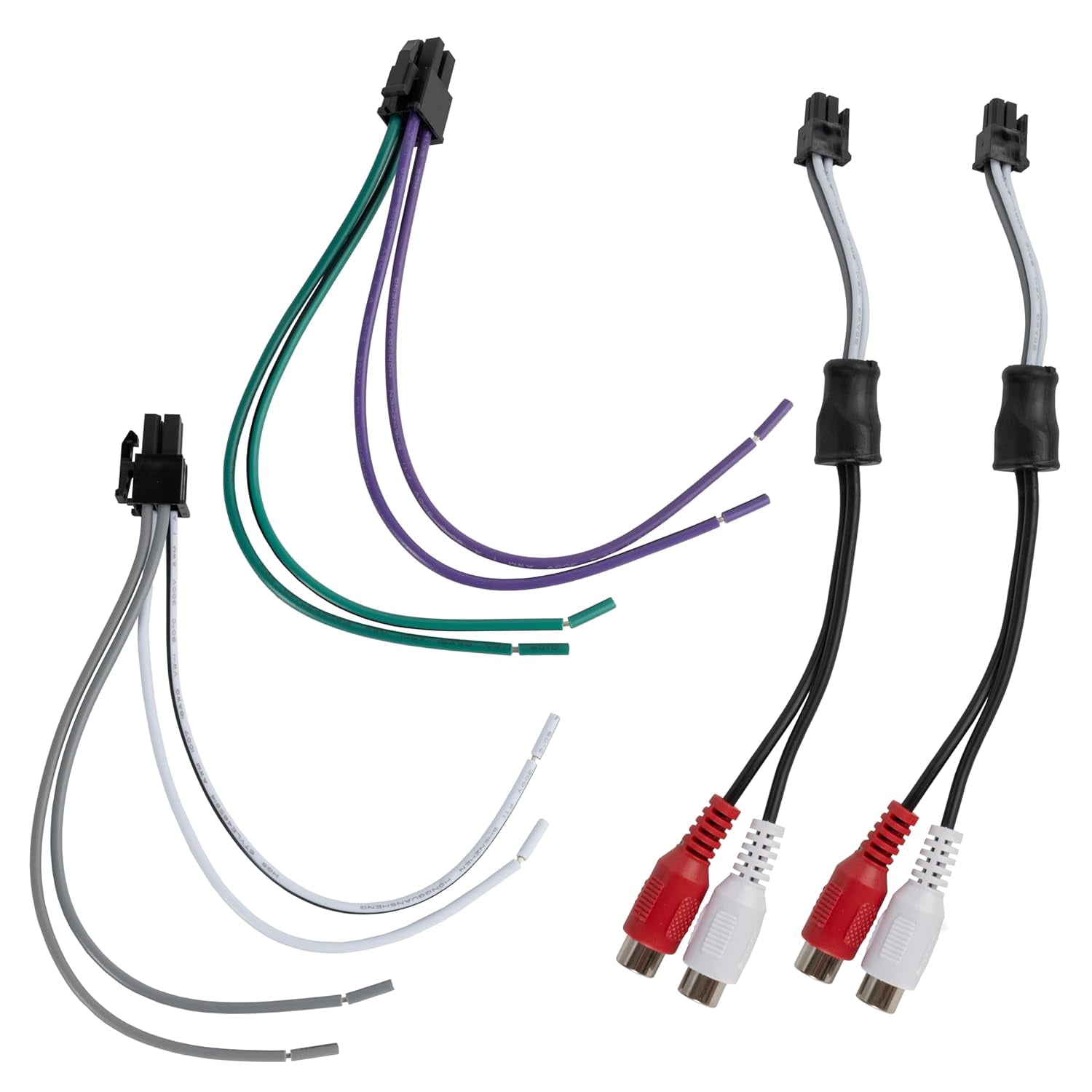

  • WITB: Amplifiers - Amplifier, Mounting screws (4), High-level input wiring harness w/ molex connector, Allen wrenches (2)
• Warranty and Return Policy
  • Parts Warranty Duration - 1 year
  • Labor Warranty Duration - 1 year
  • Warranty Provider - Manufacturer
